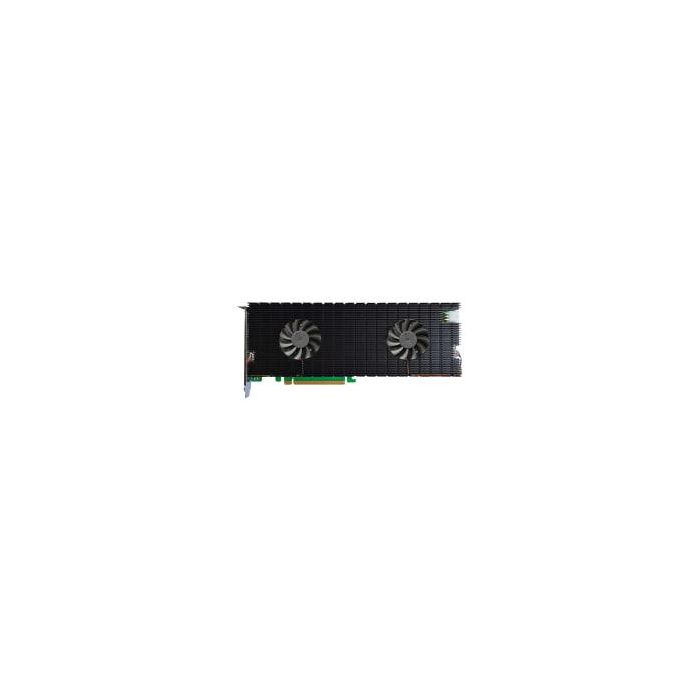

HighPoint NVMe Controller - PCI Express 3.0 x16 - Plug-in Card - RAID Supported - 0, 1, 10 RAID Level - 8 x M.2 Interface(s) - PC, Mac, Linux

Key Features 8x M.2 Ports Double Storage Capacity - up to 64TB. Dedicated PCIe 3.0 x16 Bandwidth. Truly Platform Independent NVMe RAID Solution for AMD & Intel motherboards with PCIe 3.0/4.0 x16 slots. Comprehensive RAID Storage Solution: RAID 0, 1, 10 and single-disk. Supports all major operating system platforms: Windows, macOS, Linux. Ultra-Efficient, Multi-Stage Cooling Solution. HighPoints SSD7140 high port count (HPC) NVMe RAID controller is ideal for professional applications that require a small-footprint, mass-storage M.2 NVMe solution that can take full advantage of PCIe 3.0 x16 transfer bandwidth, and deliver over 14,000MB/s of transfer performance. The SSD7140 doubles M.2 port count from 4 to eight, and can support up to 64TB of storage capacity. Our performance-focused NVMe RAID architecture enables the SSD7140 to allocate up to x4 lanes for each device channel - ideal for professional media workstation and server environments designed to support a wide range of editing, rendering, capture, and streaming applications. The eight independent M.2 channels can support RAID, non-RAID, and mixed NVMe storage configurations. No other M.2 NVMe controller in todays marketplace can match the SSD7140fts storage capability, transfer performance, or flexibility. Massive Storage Capacity Each SSD7140 RAID controller features eight independent M.2 channels, and can support RAID, non-RAID, and mixed NVMe storage configurations. No other M.2 NVMe controller in todays marketplace can match the SSD7140fts storage capability, transfer performance, or flexibility. Truly Platform Independent NVMe RAID Solution HighPoint high port count series NVMe RAID controllers are truly independent NVMe storage solutions. Unlike most NVMe devices in todays marketplace, which are tied to a specific hardware platform or brand of SSD or motherboard, SSD7000 series controllers do not require a hardware environment with Bifurcation support, or any specialized software released by SSD manufacturers; any AMD or Intel motherboard with a dedicated PCIe 3.0 x16 slot can now support up to 8 M.2 NVMe SSDs, and experience sustained transfer performance in excess of 14GB/s via a single compact PCIe device. Comprehensive RAID Storage Solution RAID 1/0 (Security & Speed) - RAID 1/0 (also known as RAID 10) requires a minimum of 4 NVMe SSd-s - it will mirror the data of one stripe array to a second, hidden stripe array for security. RAID 0 (Speed) - this mode delivers Maximum Performance, and requires a minimum of 2 NVMe SSd-s. RAID 1 (Security) - This mode creates a hidden duplicate of the target SSD, and requires 2 NVMe SSd-s to configure. Ultra-Efficient, Multi-Stage Cooling Solution The SSD7140 employs our new ultra-efficient, multi-stage cooling solution that combines a high-conductivity thermal pad with an anodized aluminum heatsink equipped with dual built-in, low noise fans. This design ensures the M.2 SSDs, NVMe chipset and RAID componentry remain cool, even under heavy load, while minimizing the risk of distraction in the work environment. Comprehensive NVMe RAID Management When it comes to maintaining critical storage configurations, each customer has specific needs and preferences. The Web RAID Management Interface (WebGUI) is a simple, intuitive web-based management tool and is ideal for customers who are new to RAID technology. Ultra-efficient, multi-stage cooling solution. The SSD7140 employs an ultra-efficient, multi-stage cooling solution that combines a high-conductivity thermal pad with an anodized aluminum heatsink equipped with dual built-in, low noise fans. This design ensures the M.2 SSDs, NVMe chipset and RAID componentry remain cool, even under heavy load, while minimizing the risk of distraction in the work environment. Massive storage capacity. Each SSD7140 RAID controller features eight independent M.2 channels, and can support RAID, non-RAID, and mixed NVMe storage configurations. Truly platform independent NVMe RAID solution. HighPoint high port count series NVMe RAID controllers are truly independent NVMe storage solutions. SSD7000 series controllers do not require a hardware environment with bifurcation support, or any specialized software released by SSD manufacturers. Comprehensive NVMe RAID management. When it comes to maintaining critical storage configurations, each customer has specific needs and preferences. The web RAID management interface is a simple, intuitive web-based management tool and is ideal for customers who are new to RAID technology.
